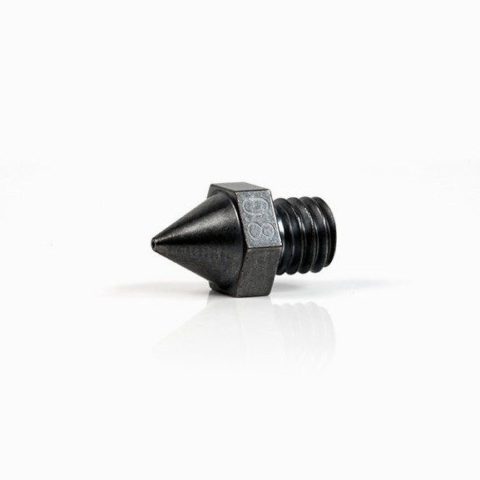

Steel Nozzle with WS2 Coating (Pro2 Series and E2 Only)

Free Shipping In The US
$49.99
€49.99 Excl. VAT

Packaging Size (WxDxH): 13x11x0.5cm

Weight with Packaging: 9g



Various sizes at 0.4/0.6/0.8mm, suitable for 1.75mm filaments.

For Raise3D Pro2 series and E2 3D Printers.

Product Characters:

  • Abrasion resistance
  • High-Temperature resistance
  • Low friction coefficient as 0.03 with WS2 Coating; restrain to filament accumulation; being stable in chemical properties; being non-toxic, non-corrosive and insoluble
  • Good lubrication and anti-abrasive performance under the highest temperature at 450℃
  • Ultra low thrust for filament fluidity

Material Characteristic:

  • Mohs Hardness: 7.8
  • Max. Print Temp: 450°C
  • Coefficient of Heat Conductivity: 26W/m.k
  • CTE: 12μm/m. °C

In addition to being suitable for normal filaments, the nozzle is also especially suitable for those composite filaments with abrasive additives such as carbon fiber, steel, wood, boron carbide, tungsten, phosphorescent pigment, etc., and those high-temperature-resistant filaments.



For Pro2 Series:

Here is the instruction to take out and install the hot ends. Click here.

Here is the instruction to swap nozzle. Click here.

For E2:

Here is the instruction to replace hot end assembly. Click here.

Here is the instruction to swap nozzle. Click here.


Need accessories to go with your 3d printer? Check our Top 6 Essential 3D Printer Accessories.
