If you are into 3D printing there are two important types you should know about: Digital Light Processing (DLP) and Liquid Crystal Display (LCD). Both are great for turning ideas into real objects, but they work a little differently.
DLP technology shines in its use of a digital micromirror device (DMD), which orchestrates UV light through a projector to sculpt resin with meticulous detail. It’s a favorite for those needing exceptional precision, especially in crafting small and intricate parts. Meanwhile, LCD printing has quickly become a favorite due to its affordability and the increasingly high resolution of LCD screens, which act as masks to shape each layer of resin.
Both methods are fast because they can set a whole layer of resin at once—much quicker than older methods. They can use the same type of resin too, which is pretty handy.
So, whether you’re a pro looking for detail and speed, or just starting out and need something more affordable, DLP and LCD resin 3D printers have something to offer.
In this article, we’ll dive into both, showing you what makes each special and how they could be the perfect fit for your next project. Stay tuned!
Understanding Vat Polymerization Technology
Vat polymerization is a cornerstone of modern resin-based 3D printing technologies, encompassing both DLP and LCD systems. This method involves a vat of liquid photopolymer resin that is selectively cured by a controlled light source. As each layer solidifies, the build platform incrementally moves, gradually forming the final 3D object.
Both DLP and LCD are subcategories of vat polymerization that utilize the advantage of full-layer exposure. This contrasts sharply with the point-by-point approach of traditional SLA, allowing for much faster printing speeds. The light source in these printers typically operates around 405 nm, though variations exist to optimize the curing process for different resin types.
A key component of these printers is a transparent release film at the vat’s bottom, often made of FEP (fluorinated ethylene propylene), which prevents the cured resin from adhering to the vat. This ensures smooth layer formation and reduces the risk of print failures.
The widespread adoption of vat polymerization, particularly in sectors such as dentistry, jewelry, and rapid prototyping, can be attributed to its ability to produce highly detailed and smooth surface finishes. Moreover, printers operating at 385 nm can provide even more efficient curing, suitable for high-performance resins, enhancing the technology’s appeal for professional and industrial applications.

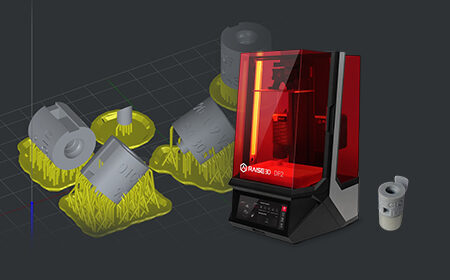

DLP (Digital Light Processing)
Digital Light Processing (DLP) technology is a form of 3D printing that uses a digital projector screen to harness the power of UV light, directing it through a system of tiny mirrors from a semiconductor chip. These mirrors, integral to the digital micromirror device (DMD), manipulate light to cure liquid resin into hardened plastic, achieving high precision and detail.
DLP is renowned for its ability to produce high-quality prints with exceptional detail on small, narrow objects, thanks to its consistent pixel size and intensive light projection. This method is particularly effective for applications requiring very tight tolerances and intricate details, such as dental implants and intricate jewelry. The technology not only promises fast print speeds due to simultaneous layer curing but also tends to have a longer lifespan for its light source, reducing maintenance frequency and costs.
However, DLP is not without its challenges. The technology can suffer from edge distortion in larger build areas if the projector’s image is overstretched. Additionally, the cost of high-end DLP printers can be prohibitive, and the larger the projected image, the greater the potential reduction in XY resolution, unless specific optical corrections are applied. Some advanced DLP systems operate at 385 nm, allowing them to react more effectively with specialized high-performance resins, offering stronger and more durable parts.
LCD (Liquid Crystal Display)
Liquid Crystal Display (LCD) 3D printing, also known as Masked Stereolithography (MSLA), uses a different approach. It employs an array of UV LEDs that shine light through a transparent LCD screen which selectively blocks light to cure the resin. This technology has rapidly gained traction for its ability to efficiently print entire layers at once, which can considerably speed up the printing process compared to more traditional methods.
One of the primary advantages of LCD printing is its affordability and the scalability of the technology to accommodate larger print volumes. High-resolution LCD panels, including monochrome versions which offer longer life and quicker curing times, make it possible to achieve remarkably fine details, rivaling more expensive DLP systems.
However, LCD printers are not without drawbacks. The lifespan of LCD screens can be shorter than other components, often requiring replacements due to degradation from intense UV exposure. Additionally, light uniformity issues can arise, leading to light bleed or inconsistencies in curing, which can affect the overall quality of the print. Larger print sizes necessitate correspondingly large LCD screens, which can significantly increase the cost and maintenance requirements of the printer.
What Are Key Similarities Between DLP and LCD?
Digital Light Processing (DLP) and Liquid Crystal Display (LCD) 3D printers share several fundamental similarities that define their role in the resin-based 3D printing landscape, often making them preferable to traditional Stereolithography (SLA) for various applications. Both technologies utilize a vat polymerization process that cures light-sensitive resin, layer by layer, using UV light. This entire-layer exposure allows DLP and LCD printers to operate faster than the point-by-point laser tracing used in SLA, enhancing print speed and efficiency.

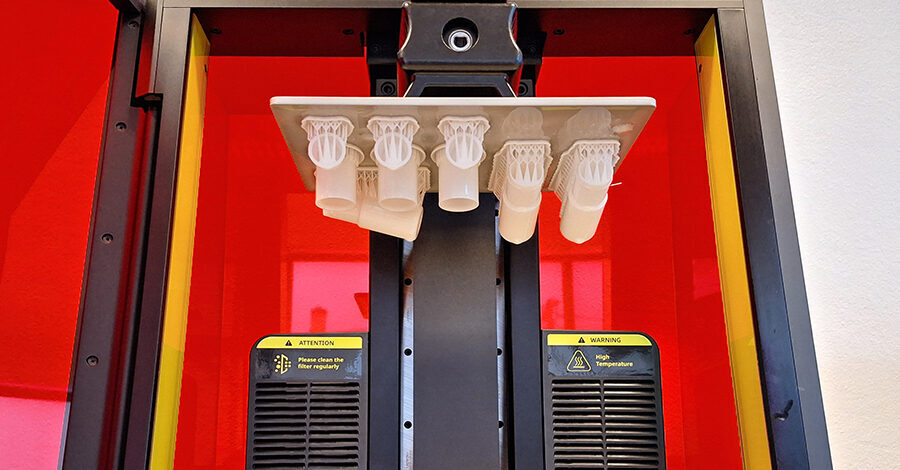

Both systems employ a similar basic motion system, where a build plate moves vertically—dipping into and retracting from a resin vat—facilitating the layer-by-layer construction of the print object. This movement is crucial for maintaining the structural integrity and detail of the printed object as it cures and solidifies. Additionally, both DLP and LCD technologies can utilize a wide range of open-source resins, provided they are compatible with the printers’ specific light wavelength—typically around 405 nm, although some specialized systems may operate at 385 nm.
The post-processing steps for both DLP and LCD are also similar. After printing, parts must be washed to remove any uncured resin and then cured under UV light to achieve their final mechanical strength and surface finish. This process ensures that the parts meet the required specifications for functionality and aesthetics.
In terms of the physical properties of the printed objects, both technologies offer the capability to produce parts with fine details and smooth surfaces, although the actual precision and quality can vary based on the specifics of the light projection and mechanical setup. Regular maintenance for both types of printers includes replacing vat films to ensure quality and checking for resin spills to avoid machine damage.
Detailed Differences Between DLP and LCD
Understanding the differences between DLP and LCD 3D printing technologies provides deeper insights into their respective advantages and ideal use cases. These differences largely stem from the methods each technology uses to project light onto the resin, significantly impacting print quality, accuracy, and machine maintenance.
Light Projection
DLP technology employs a high-intensity projector to shine UV light through a digital micromirror device (DMD), which contains thousands of tiny mirrors. Each mirror directs the light toward specific areas of the resin vat, curing the resin precisely where needed. This method allows for sharp detail and high resolution, particularly beneficial for producing small, intricate parts. However, the projection can suffer from distortion at the edges of larger prints, where the light must stretch further, potentially compromising the print’s accuracy.
In contrast, LCD uses a grid of UV LEDs to illuminate an entire LCD panel, which acts as a mask to block light from areas that should not be cured. This setup can achieve high resolution with the newer high-density monochrome screens, which also offer longer life and faster curing times than traditional color LCD screens. Nevertheless, inconsistencies in LED intensity or misalignment of the LCD mask can lead to uniformity issues across the print, sometimes resulting in light bleed or pixelation, which affects the final print quality.
Both DLP and LCD print entire layers simultaneously, which is a significant improvement over SLA’s more time-consuming point-by-point laser tracing. However, the nature of light projection in DLP and LCD can lead to different challenges in maintaining uniformity and resolution, especially as build volumes increase.
Curing Process
The curing process in DLP (Digital Light Processing) and LCD (Liquid Crystal Display) 3D printers significantly impacts the mechanical properties of the printed parts, primarily due to differences in light intensity and energy absorption. DLP printers use a high-intensity light projected through a digital micromirror device (DMD), enabling them to cure resin very quickly. This results in strong layers with shorter exposure times, which is crucial for applications requiring high mechanical strength and tight tolerances.
In contrast, LCD printers depend on the quality and density of the LED array behind the LCD screen, which can vary the light intensity across the build area. While recent advancements in monochrome LCD screens have improved their light intensity, making them nearly comparable to DLP, the variance can still lead to differences in cure rates. This variation may affect the uniformity and mechanical strength of the final parts unless meticulously calibrated.
Both technologies might suffer from overexposure, which can lead to oversized features or artifacts in the printed parts. However, LCD setups sometimes require additional supports or slower lift speeds to maintain print stability, especially since up to 90% of the energy can be absorbed by the LCD screen, reducing irradiance. Careful calibration of exposure settings is essential to optimize print quality and mechanical properties in both systems.
Resolution and Tolerances
Resolution and tolerances in 3D printing are crucial for achieving detailed and accurate parts. DLP printers offer high resolution, defined by the micromirrors on the DMD chip, with typical XY resolutions such as 2560 x 1440 on machines like the Raise3d DLP printer. This high resolution is particularly effective for small build areas, where the precision of DLP can produce exceptionally fine details. However, when scaled up, the resolution can diminish, a phenomenon known as voxel stretch, which might affect the precision of larger parts.
LCD technology, on the other hand, relies on the pixel density of the LCD panel itself. High-resolution LCDs, such as 4K or even 8K panels, can deliver detailed outputs over larger areas, making them suitable for larger projects without losing much detail. However, the uniformity of pixel exposure can vary, potentially leading to light bleed which can soften fine features. Despite these challenges, LCD printers often present a more cost-effective solution for achieving high resolution in large-scale prints.
The inherent differences in how each technology manages resolution and tolerances highlight their suitability for different types of projects. DLP is preferable for projects requiring extreme detail on a smaller scale, whereas LCD can be more appropriate for larger projects where high resolution is still critical but budget considerations are also a priority.
Print Quality and Surface Finish
The quality of the surface finish and the visibility of layers are significant benchmarks for assessing 3D printing technologies. Both DLP and LCD printers are capable of producing smooth surfaces that are superior to many filament-based processes, thanks to their layer-by-layer curing approach. However, subtle differences in finish quality can still occur due to the nature of light projection and resin interaction.
DLP printers tend to exhibit what is known as “voxel stepping,” visible especially on larger builds where the projection must cover a larger area. This effect can sometimes give a slightly pixelated appearance to the surface, although it can be mitigated with proper anti-aliasing techniques in the slicing software.
LCD prints, while generally smooth, can suffer from “light bleed” due to less precise masking by the LCD panel. This issue can blur the edges of features, affecting the crispness of the final product. However, with optimal settings and thorough post-processing—which includes additional washing and UV curing—both DLP and LCD can achieve high-quality finishes that are suitable for both functional and aesthetic purposes.
Print Speed and Throughput
When evaluating the print speed and throughput of DLP (Digital Light Processing) and LCD (Liquid Crystal Display) 3D printers, it’s evident that both technologies have optimized the resin curing process to significantly surpass the speeds of traditional laser-driven SLA (Stereolithography Apparatus). Both DLP and LCD cure entire layers simultaneously, which allows for rapid construction of models, especially in designs that benefit from layer-based building.
DLP printers are particularly known for their high-speed capabilities due to the intense light projection from a digital projector, which can cure resin quickly and efficiently. For example, the Raise3d DF2 DLP printer boasts a maximum print speed of 80 mm/h at a layer thickness of 0.2 mm. This makes DLP highly suitable for scenarios where time is of the essence and high throughput is critical.
Conversely, LCD printers, especially those equipped with modern monochrome panels, have made significant strides in closing the speed gap with DLP. These LCD screens offer faster curing times compared to older color screens, thus improving overall print speed. However, the quality and arrangement of the UV LEDs behind the LCD significantly influence these speeds, as uneven lighting can lead to inconsistent curing times across the print bed.
Both technologies can handle a variety of resin types, but differences in light intensity and exposure requirements mean that resin viscosity and formulation can affect the optimal printing speed. Thicker resins might require longer exposure times, which could slow down the process. Additionally, advanced DLP systems using a 385 nm light source can enhance throughput by reducing the necessary exposure per layer, which is particularly advantageous in high-volume production environments. LCD printers, on the other hand, maintain consistent exposure times per layer regardless of the total build area, allowing for the efficient production of multiple parts simultaneously.
Wavelength Considerations
In 3D printing, the wavelength of the UV light source plays a crucial role in determining the reactivity of the resin, impacting both print accuracy and material performance. Most DLP and LCD 3D printers operate at a standard wavelength of 405 nm, which accommodates a wide range of resins designed for general use across various industries. This wavelength ensures that resins are broadly interchangeable between different printer types, provided they are formulated for the same UV specifications.
However, some specialized 3D printers utilize a 385 nm light source, which can alter the cure rate and affect the mechanical properties of the final printed parts. These systems are often used with specific clear resins or for applications requiring materials that are more reactive to shorter wavelengths, enhancing the performance characteristics of the printed objects.
The choice of wavelength can also dictate the level of precision achievable with a printer. Printers that operate at lower wavelengths tend to have a more concentrated energy output, which can be beneficial for achieving finer details and higher accuracy, particularly in dental and jewelry applications. Conversely, a standard 405 nm wavelength is more forgiving and versatile, making it suitable for a broader range of applications.
Furthermore, the integration of different wavelengths can necessitate recalibration of the printer settings, as slight deviations in wavelength can lead to variations in how the resin cures, affecting everything from dimensional accuracy to surface finish.
Print Volume Scalability
Scaling the print volume in DLP and LCD 3D printing presents unique challenges and trade-offs related to the technologies’ inherent characteristics. DLP printers, which use a digital micromirror device (DMD) for light projection, must adjust the size of the projected image to fit different build volumes. This can lead to pixel distortion, especially at the edges of the build plate, where the light must stretch further to reach. Such distortion can compromise the precision of the printed parts unless the system includes advanced optics to correct for these effects.
LCD printers, by contrast, scale by increasing the size of the LCD panel itself, along with the corresponding UV LED array. While this allows for larger print volumes without significant loss of detail, maintaining uniform light distribution across a larger panel can be challenging. High-resolution LCD panels are necessary to ensure that higher pixel density is necessary as it helps to preserve detail as the build volume increases.
For large-scale prints, LCD technology often offers a more cost-effective solution, as scaling up the size of an LCD panel and its backlighting system is generally less expensive than the complex optical systems required for large-scale DLP printing.
Material Options and Compatibility
Both DLP (Digital Light Processing) and LCD (Liquid Crystal Display) 3D printers predominantly utilize 405 nm resins, which supports a broad spectrum of general-purpose and specialty materials. This commonality allows for a wide variety of applications across both platforms. However, the specific capabilities and optimal uses of these materials can vary significantly between the two technologies.
In professional settings, DLP systems are often preferred for their ability to handle higher-intensity curing processes. This capability makes DLP suitable for thicker, more viscous resins that are often used in industrial or dental applications, where durability and precision are paramount. The intense light projection of DLP can more effectively activate these heavy-duty resins, ensuring a solid cure and robust final products.
Conversely, LCD printers typically require resins formulated for lower-intensity light, which stems from the LED arrays used behind the LCD screens. While earlier models of LCD printers were limited in the types of resins they could effectively cure, advances in technology have seen the introduction of more versatile LCD-compatible formulations. These newer resins can achieve excellent results on LCD platforms, making them more adaptable to a variety of printing needs.
It’s important to note that while both technologies can operate with a wide range of resins, proprietary systems may restrict the use of third-party materials. Additionally, printers equipped to utilize 385 nm light sources can offer enhanced capabilities, such as processing resins that require more intense UV exposure, which can be crucial for producing parts that must withstand extreme conditions or require exceptional mechanical properties.
Costs: Purchase Price vs. Total Cost of Ownership
When considering the financial implications of DLP versus LCD 3D printers, both the initial purchase price and the total cost of ownership must be evaluated. Entry-level LCD printers are notably affordable, often available for a few hundred dollars, which makes them accessible to hobbyists and small businesses. However, professional-grade LCD models can also be budget-friendly, albeit with higher capabilities and costs compared to the most basic units.
DLP printers, in contrast, typically involve higher upfront costs. This is due to their complex light projection systems, which often include high-end components designed for precision and longevity. Although the initial investment is greater, the durability of DLP projectors can lead to lower long-term maintenance costs. These projectors usually last longer than LCD screens, which are prone to wear from intense UV exposure and may need frequent replacements, especially in high-usage scenarios.
The ongoing costs for both types of printers include consumables like resin and replacement parts. While replacing a worn LCD panel might be relatively inexpensive for smaller printers, larger or high-resolution screens can be costly. In contrast, the robust construction of DLP printers minimizes frequent maintenance but can be expensive when repairs or replacements are necessary.
In assessing the total cost of ownership, factors such as the lifespan of critical components (like screens and projectors), the frequency of resin usage, and potential downtime due to maintenance or parts replacement should all be considered.
Practical Applications
The practical applications of DLP and LCD 3D printing technologies vary widely, influenced by each method’s specific strengths in terms of detail, durability, and economic efficiency. DLP is highly regarded for its precision and is often the preferred choice for creating small, intricate parts with tight tolerances, such as in dental molds and jewelry. The technology’s ability to finely control the light projection allows for exceptional detail and surface finish, which are critical in these high-stakes applications.
LCD printing, while sometimes less detailed than DLP, offers substantial benefits for hobbyists and designers who require good quality at a lower cost. Its increasing popularity is due in part to the affordability of the printers and the high resolution achievable with modern LCD panels. As such, LCD is extensively used for prototyping and educational purposes, where cost efficiency is as important as print quality.
Both technologies are employed across various industries for a range of products, from engineering prototypes to bespoke fashion items. Larger LCD printers that can accommodate significant build volumes are particularly useful for producing multiple parts simultaneously, enhancing productivity without sacrificing quality. Meanwhile, the reliability and repeatability of DLP make it ideal for industries requiring consistent output, such as short-run manufacturing or specialized component fabrication.
Choosing Between DLP and LCD
When deciding between Digital Light Processing (DLP) and Liquid Crystal Display (LCD) 3D printers, several factors should guide your choice to ensure that you select the technology that best fits your needs. Budget considerations are paramount; LCD printers generally offer a lower entry cost, making them ideal for hobbyists or small businesses. Conversely, DLP printers, while more expensive, provide superior accuracy and are better suited for applications requiring intricate detail.
Detail level is important, especially if your projects involve small, finely detailed pieces where DLP’s precise projection capabilities would be beneficial. Additionally, consider the expected production volume. LCD’s ability to quickly produce multiple parts due to its larger build area can be advantageous for high-volume projects, whereas DLP excels in faster curing of parts at a smaller scale due to its intense light projection.
The total cost of ownership also plays a critical role; this includes not only the initial purchase price but also ongoing costs such as maintenance and the availability of spare parts. Resin compatibility and the specific application requirements—whether you’re creating prototypes, detailed jewelry, or industrial parts—should also influence your decision. For those in environments requiring consistent precision and repeatability, DLP’s controlled projection offers advantages, especially when frequent recalibration might be a concern.
When to Choose DLP 3D Printer?
Choosing a Digital Light Processing (DLP) 3D printer is ideal when your project requirements demand high-detail, smaller-scale parts where precision and resolution are critical. This technology excels in applications that benefit from the sharp resolution and dimensional accuracy provided by the micro-mirrors on the DMD (Digital Micromirror Device), which project UV light with exceptional precision.
DLP printers are especially suited for fields like dental work, jewelry making, and precise engineering prototypes where the fine detail capabilities of DLP can significantly impact the final product quality. The projector in a DLP printer typically has a longer life than the screens used in LCD printers, reducing long-term maintenance costs and enhancing reliability. This feature makes DLP printers more resilient to potential operational hazards, such as resin spills, since the projector is usually mounted away from the resin vat, minimizing the risk of contamination.
For industrial applications that require consistent performance across numerous prints or for projects where batch production of highly detailed parts is necessary, DLP printers are advantageous. They can handle specialized, high-performance resins designed for applications demanding high mechanical strength and temperature resistance, particularly those resins that activate more effectively under the specific wavelengths emitted by DLP projectors (often 385 nm).
Moreover, the repeatability and consistency of DLP printing make it a strong choice for manufacturing environments where maintaining tight tolerances across multiple production cycles is essential. This reliability ensures that each part produced matches the specifications of the original design closely, which is crucial for applications in aerospace, automotive, and medical industries.
When to Choose LCD 3D Printer?
Selecting an LCD (Liquid Crystal Display) 3D printer is particularly advantageous for users who prioritize affordability and substantial build volume without compromising significantly on resolution. LCD printers are typically more budget-friendly, making them an ideal choice for hobbyists, product designers, and small businesses that seek a balance between cost and performance.
One of the major strengths of LCD technology is the use of modern high-resolution panels, including monochrome screens that enhance detail while reducing exposure times. This development allows LCD printers to closely match the detail capabilities of DLP (Digital Light Processing) printers, particularly beneficial for applications that do not require the ultra-fine details provided by DLP.
LCD printers are well-suited for projects that require larger or multiple-part prints. The ability to scale up print sizes affordably means that users can undertake large-scale prop-making or short-run customization projects without the financial burden associated with more specialized projection systems. Additionally, the widespread availability and lower cost of replacement components for LCD systems make maintenance more manageable and predictable, further enhancing their appeal to users who produce prints frequently or in large volumes.
In scenarios where the frequent need for screen replacement arises, the lower cost of LCD components mitigates the overall expense, making it a cost-effective solution over time. For those engaged in crafting larger items or batches of goods, LCD technology offers a practical and economical solution, allowing for significant versatility and accessibility in 3D printing.
Future Trends and Emerging Developments
As 3D printing technology advances, both DLP and LCD are poised for significant breakthroughs that promise to enhance capabilities and integrate more seamlessly into industrial applications. The future trends in this sector focus on technological enhancements that include advanced light engines and smart factory integrations, as well as the development of new materials that extend the possibilities of 3D printing.
Innovations in projector optics and LCD technology are pushing the boundaries beyond the current 8K resolutions, aiming for even higher-density screens that offer unprecedented detail and quality. Meanwhile, engineers are working on improved uniformity systems and proprietary solutions to correct edge distortion, which will enhance the overall quality of prints by maintaining resolution consistency across the entire build platform.
Manufacturers are also focusing on the creation of specialized resins that are compatible with a wider range of wavelengths, allowing for clearer, stronger parts with better mechanical properties. The push towards integrated solutions that combine hardware, software, and materials is leading to simplified, more automated batch production processes, which are becoming essential in scaling operations within industries.
Furthermore, efforts are underway to reduce the costs associated with screen replacements and to extend the lifespan of projectors used in DLP printing. Research into more durable, heat-resistant LCD panels could decrease the frequency of replacements needed, making large-format LCD printing more viable and cost-effective. Similarly, advanced DLP modules that feature adaptable optics promise to deliver consistent, high-quality prints across larger build areas, marking a significant step forward in the scalability of 3D printing technology.
Conclusion
We’ve come to the end of our comparison guide featuring the DLP and LCD 3D printers, and it’s clear that both paths offer distinct advantages tailored to specific needs. DLP excels in precision, making it ideal for intricate details needed in jewelry and dental applications. However, it does come at a higher cost. On that same note, LCD provides a more budget-friendly option with its larger build areas, perfect for hobbyists or large-scale projects where fine detail is less crucial.
When deciding which technology to adopt, consider your budget, the detail level you require, and your production volume. If your priority is cost and scale, LCD might be the way to go. For precision and detail, DLP could be the better investment.
Both technologies are evolving with innovations that enhance their appeal and capabilities, making the future of 3D printing exciting. As you weigh your options, also think about the long-term costs like maintenance and downtime. This decision isn’t just about meeting today’s needs but also about paving the way for tomorrow’s innovations.
