DLP vs SLA 3D Printing

Over the years, we’ve seen a turning point in resin-based 3D printing and how it has become an instrument in creating complex and precise components, and revolutionizing industries from prototype development to final product manufacturing. Using technologies like Stereolithography (SLA) and Digital Light Processing (DLP), this method employs lasers or projectors to transform liquid resin into solid, detailed creations. Beyond SLA and DLP, newer methods like LCD/MSLA are making their mark, offering affordable price points and high-quality printing options.

Since its debut in the 1980s, resin 3D printing has continually advanced, now enabling even compact desktop machines to deliver parts that rival industrial standards in both durability and design.

In this article, we’ll focus on exploring how each technology meets different creative demands, helping you navigate through your 3D printing journey.

What is SLA 3D Printing?

Stereolithography (SLA) 3D Printing stands out as one of the earliest developed resin-based 3D printing technologies. It employs a vat polymerization technique where a UV laser meticulously cures photosensitive polymers within a resin tank, building objects one precise layer at a time. This method not only pioneered the field but has evolved with configurations such as inverted design which minimizes the volume of the resin vat needed, enhancing the usability and reducing waste. The typical workflow involves the laser tracing desired shapes on the surface of the resin, solidifying it to form the model layer by layer. SLA’s ability to maintain high resolution even with increased build volume and its reduced peel forces enhance both the quality and the ease of post-processing. With layer thicknesses achieving as low as 25 microns, SLA is especially favored for applications requiring intricate details and smooth finishes.

What is DLP 3D Printing?

Digital Light Processing (DLP) 3D Printing utilizes a digital micromirror device (DMD), which directs UV light onto the resin surface to cure entire layers simultaneously. This method contrasts with SLA’s point-by-point laser approach, offering speed advantages particularly when fabricating large parts or conducting multiple productions in a single build cycle. Digital Light Processing method harnesses a projector to illuminate the photopolymer resin, which is set in a vat, hardening the resin per the design’s requirements. The projector’s resolution and the distance to the build platform dictate the minimum feature size of the print, with advanced setups capable of achieving layer thickness as fine as 5 microns. Despite its rapid layer exposure, DLP’s effectiveness can vary with projector resolution, potentially impacting the detailing on larger surfaces. This technology finds its niche in industries where speed is critical, such as dental and jewelry manufacturing, providing quick turnaround times for high-quality, detailed items.

What are the Similarities Between SLA and DLP?

Both SLA (Stereolithography) and DLP (Digital Light Processing) are prominent methods within the realm of resin-based 3D printing, using photopolymer resins to create detailed, high-precision models. These technologies share a foundational approach: curing photosensitive resin layer by layer from a liquid state to a solid form using a light source—a UV laser in SLA and a projector in DLP. This similarity in their core process allows both methods to produce parts with smooth surfaces and minimal visible layer lines, highly desired in fine detail applications such as jewelry, dental products, and prototyping.

The similarities extend into their workflows. Both SLA and DLP printing processes require a vat of resin, where a light source selectively cures the liquid resin to build the model layer by layer. Post-processing steps are also identical, involving washing off uncured resin, removing support structures, and further curing under UV light to finalize the physical properties of the parts. Despite their technological differences, both SLA and DLP can experience challenges like warping or degradation when exposed to direct sunlight for extended periods, necessitating careful handling of the finished products.

Comparing SLA and DLP

Realizing the differences between SLA and DLP is crucial as it directly impacts print quality, operational cost, and suitability for specific applications. Here, we explore several critical factors:

Resolution and Dimensional Accuracy

When comparing the dimensional accuracy and resolution of SLA and DLP, the distinction lies in their approach to curing the resin. SLA uses a UV laser that can achieve extremely fine details by moving the laser spot precisely, typically around 85 microns in diameter, allowing for intricate features and high-resolution printing. This capability makes SLA ideal for applications requiring tight tolerances and complex geometries.

Conversely, the DLP process involves utilizing a digital micromirror device to project UV light, curing an entire layer of resin at once. The resolution in DLP printing is dependent on the projector’s pixel size, which defines the minimum feature size of the printed parts. Although modern DLP printers can achieve layer thicknesses as fine as about 5 microns, the voxel (volumetric pixel) resolution is often limited by the projector’s resolution, potentially resulting in “stair-stepping” on curved surfaces. However, DLP can be faster than SLA, especially when printing large parts or multiple items simultaneously, due to its ability to cure whole layers in one exposure.

The two technologies demonstrate exceptional dimensional accuracy, with industrial-grade machines reaching near 98-99% precision, contingent on proper calibration and the mechanical properties of the resin used.

Build Volume

When examining the capabilities of SLA and DLP 3D printing technologies, build volume is a critical factor that often dictates their application in various industries. SLA printers are renowned for their ability to scale up effectively. The nature of the laser technology allows for larger build areas without a loss in resolution, making it possible for industrial SLA machines to achieve dimensions as large as 1500 × 750 × 550 mm. Desktop versions, while smaller, still offer considerable space (around 145 × 145 × 185 mm) compared to other technologies.

Conversely, DLP printers are somewhat limited by the resolution of the projector used. The build volume in DLP systems is inherently tied to the projector’s resolution—larger build areas might result in lower resolution unless high-resolution projectors are employed. Typical DLP machines might range in size from about 400 × 300 × 500 mm, with the actual size affecting both the detail achievable and the cost of the resin used, as larger vats of resin are more expensive and complex to manage.

Surface Finish

Both SLA and DLP excel in producing parts with smooth surfaces superior to those typically achieved with extrusion-based 3D printing methods. The surface quality in SLA is exceptionally high due to the precision of the UV laser, which can produce fine details with smooth, rounded edges beneficial for organic and complex designs. The continuous nature of the laser’s movement allows for even curing, which results in a consistent and high-quality finish.

DLP, while also capable of smooth finishes, may exhibit slight voxel lines or stepping on the surfaces of the printed parts, particularly where the geometry involves curves. However, advancements in DLP technology, including high-resolution projectors and sophisticated anti-aliasing techniques, have significantly mitigated these effects. The choice of resin and specific printer settings can further enhance the surface quality, with some clear resins capable of producing near-transparent results after proper post-processing.

Speed and Throughput

The intrinsic differences between how SLA and DLP printers operate directly influence their printing speeds and overall throughput. DLP holds an advantage in speed for larger builds or when printing multiple parts simultaneously because it can cure an entire layer of resin with one exposure. This capability makes DLP particularly advantageous in high-throughput environments such as dental labs where batch printing is common.

SLA’s speed, however, depends on the complexity and size of the individual parts. While the tracing of a UV laser might be slower, particularly for larger or more complex layers, advancements in SLA technology have led to the development of high-powered lasers and optimized peel mechanisms that reduce layer curing time. Nevertheless, SLA might still be the slower of the two when dealing with high-volume or large-scale prints.

Workflow

The operational workflows of SLA and DLP 3D printing technologies exhibit distinct characteristics due to their differing mechanisms. In SLA systems, setup and calibration can be intricate, particularly with the alignment of mirrors or galvanometers that direct the laser beam. Modern SLA machines, however, increasingly incorporate automated features to simplify these processes, thereby reducing setup time and the need for frequent recalibrations.

DLP printers, in contrast, tend to have a simpler setup thanks to the use of projectors. These light sources are generally easier to maintain and replace due to the absence of complex moving parts associated with laser systems. The consistency of the light projection across the build plate is vital for achieving uniform cure depth and dimensional accuracy, which underscores the importance of regular calibration to ensure that the projector’s light uniformly reaches all areas of the resin vat.

Both technologies necessitate stringent safety measures during operation, including handling liquid resin and ensuring proper ventilation due to the fumes that can be emitted during printing. Post-processing for both SLA and DLP involves washing the printed parts to remove any uncured resin and subsequent UV curing to achieve the final material properties.

Materials and Applications

SLA and DLP printers use a diverse array of resins that cater to different applications, ranging from standard to specialty uses. Both technologies support materials such as rigid, flexible, and high-temperature resins. Additionally, they accommodate specialty resins that are flame-retardant or biocompatible, which are extensively used in industries like automotive, dental, jewelry, and medical device manufacturing.

The material properties, such as hardness, elasticity, and thermal stability, vary significantly, influencing the choice of resin based on the specific application requirements. Moreover, both SLA and DLP systems can utilize filled composite resins, which include additives like glass or ceramic to enhance structural and aesthetic properties.

Layer Thickness

The layer thickness in SLA and DLP printing can significantly influence both the detail of the printed parts and the speed of the printing process. SLA machines are capable of achieving extremely fine layers, down to around 10-25 microns, which allows for a high degree of detail but can increase the total print time. DLP systems can also reach minimal layer thicknesses, sometimes as low as 5 microns, depending on the resolution of the projector and the calibration of the optics.

Adjustable layer thickness is a feature in some advanced machines, permitting the printer to switch between different layer thicknesses within a single print job. Thicker layers can accelerate production times but at the cost of detail, making them suitable for less intricate sections of a print. Conversely, thinner layers are used for areas requiring high detail, though they slow down the printing process.

Print Durability

The durability of prints from SLA and DLP 3D printing technologies hinges significantly on the resin chemistry and the post-curing processes employed. Both methods are capable of producing parts with robust isotropic strength, essential for functional prototypes and small-batch manufacturing. The resins used can vary in toughness, with some specifically formulated to be impact-resistant, accommodating the needs of industries that require durable components.

Proper support design and orientation are critical in ensuring that the printed parts have consistent strength and maintain dimensional stability. Missteps in these areas can lead to weaknesses in the final product, particularly if overexposure or underexposure occurs during the printing process, which can adversely affect the bonding between layers. Furthermore, for large prints, selecting a resin formulation that minimizes warping or delamination is crucial, as these factors can significantly compromise the structural integrity of the part.

Safety & Environmental Factors

Safety and environmental considerations are paramount in the operation of both SLA and DLP 3D printers. The liquid resins used in these technologies can be irritating or hazardous, necessitating the use of gloves and proper ventilation to mitigate exposure to potentially toxic substances. The handling and disposal of uncured resin follow strict regulations to prevent environmental contamination, highlighting the importance of responsible practices in additive manufacturing.

In addition, the UV light sources used in both SLA and DLP printing require careful handling to avoid exposure, which can be harmful. Enclosed desktop or benchtop models of these printers help in reducing fume emissions and UV exposure, making them safer for use in more confined or less industrial environments. Long-term exposure to UV light or sunlight can degrade the materials used in printed parts, which may necessitate additional post-processing steps, such as the application of UV-resistant coatings to extend the life of the products.

Energy Consumption

The energy consumption of SLA and DLP printers varies based on several factors, including the power requirements of the laser or projector, the presence of heating elements for the resin, and the energy needed for post-curing processes. DLP printers may have an advantage in energy efficiency during the printing process due to their ability to cure entire layers simultaneously, reducing the time the light source is active. However, the overall energy consumption also includes the operational needs of the electronics and cooling systems inherent in the printers.

SLA printers, especially those with larger build volumes, might consume more energy due to the need for more powerful lasers and longer operation times to complete detailed projects. Despite this, resin-based printers generally use less energy compared to some large-scale industrial manufacturing systems, making them a more sustainable option for certain applications.

Cost

Entry-level models suitable for hobbyists and small businesses can be relatively affordable, often costing just a few hundred dollars. In contrast, industrial-scale printers that offer larger build volumes and faster print speeds can demand investments of several hundred thousand dollars.

Both SLA and DLP printers operate within either open or closed resin ecosystems. Open systems, which allow users to source resins from various suppliers, tend to offer cost savings and greater flexibility in material properties but may require more frequent calibration to ensure optimal print quality. Closed systems simplify resin management but often come at a higher ongoing cost due to proprietary resin requirements.

Long-term costs extend beyond initial equipment expenses. The price of resins, which are generally more expensive than standard printing filaments, can add up, particularly when printing large volumes or highly detailed parts that require specialty materials. Additionally, the maintenance of these printers includes periodic replacement of consumables like resin vats, projector bulbs, or laser components. While more sophisticated printer models may reduce the frequency of maintenance, they come with higher upfront costs, potentially impacting the total cost of ownership.

Post-Processing Steps

Post-processing in SLA and DLP 3D printing involves several crucial steps that are essential for achieving the desired finish and mechanical properties of printed parts. Both technologies typically require the washing of parts with solvents such as isopropyl alcohol to remove any uncured resin. This step is critical for ensuring that the final product is fully solidified and safe to handle.

Following cleaning, parts must undergo UV post-curing, which helps to further strengthen the material and finalize its properties. The methods for support removal also play a significant role in the post-processing phase. While both SLA and DLP use similar support structures, differences in the technologies can affect how easily these supports can be removed without damaging the part. For example, DLP might use lighter-touch supports that are easier to remove due to the nature of the curing process, which can affect the overall speed of post-processing.

The investment in time and equipment for post-processing can be substantial, and in some cases, specialized automated systems are employed to streamline the cleaning and curing stages, thereby reducing labor costs and increasing throughput.

Key Dimensions and Design Considerations

When designing for SLA or DLP printing, several key dimensions and considerations must be taken into account to optimize the print success and part functionality. The minimum feature size that can be accurately produced is directly influenced by the laser spot size in SLA printers and the pixel size of the projector in DLP printers. Generally, these dimensions range from around 0.1 to 0.3 mm, which are critical for ensuring the structural integrity and detail of the print.

Design best practices for SLA and DLP include avoiding large flat overhangs to minimize suction forces during the peel process, which can lead to print failures. Additionally, incorporating drainage holes in hollow parts can prevent pressure build-up and resin trapping, which could otherwise cause issues during the post-processing stage.

What are the Advantages of DLP 3D Printing Over SLA 3D Printing?

Digital Light Processing (DLP) 3D printing offers several advantages over Stereolithography (SLA), particularly in areas of speed, maintenance, and operational efficiency. These benefits make DLP a compelling choice for many users, especially those in environments where production speed and printer size are critical considerations.

• Layer Printing Speed: DLP can print entire layers at once, making it significantly faster than SLA when producing multiple parts or items with larger cross-sections. This capability is particularly beneficial in commercial settings where time equals productivity.
• Maintenance Simplicity: The light source in DLP printers, typically a projector, is easier to maintain and calibrate compared to the complex laser systems in SLA printers, simplifying ongoing upkeep.
• Hardware Compactness: DLP printers often feature more compact designs due to their reliance on a projector, which does not require the same mechanical setup as lasers. This makes them ideal for smaller workspaces or for users who require portability.
• Cost-Effectiveness: Entry-level DLP printers are generally less expensive, providing a more accessible option for hobbyists and semi-professionals without sacrificing print quality.
• Mechanical Simplicity: With fewer moving parts than SLA systems, DLP printers typically face fewer alignment issues, which can reduce maintenance time and costs.

What are the Advantages of SLA 3D Printing Over DLP 3D Printing?

Stereolithography (SLA) 3D printing also presents certain advantages, particularly in the quality of the print and the versatility it offers for different applications. SLA is favored in industries where the precision of detail and smoothness of the surface are paramount.

• Surface Finish Quality: SLA is renowned for its ability to produce parts with exceptionally smooth finishes, especially on curved or complex surfaces, thanks to the precision of laser tracing.
• Scalable Build Volumes: SLA technology supports scalable build volumes without a loss in resolution, enabling the production of large parts that are also highly detailed.
• Detail Accuracy: The precise laser in SLA is ideal for creating highly detailed and intricate designs, which is crucial for applications in dentistry, jewelry, and medical modeling.
• Material Diversity: SLA printers support a wide range of advanced resin formulations, catering to various professional applications, including those requiring durable, flexible, or bio-compatible materials.
• Large Build Capability: Certain SLA printers can produce very tall parts — up to 1.5 meters — while maintaining consistent resolution throughout the build, a critical feature for industrial applications.

Specialized or Industry-Specific Applications

3D printing technologies like SLA and DLP have transformed numerous industries by enabling the rapid production of highly detailed and custom parts. These technologies are particularly valuable in fields that require precision and customization, such as dentistry, jewelry, and engineering.

Dental Applications

In dentistry, the precision and speed of SLA and DLP are crucial for creating accurate dental appliances. These technologies are extensively used for:

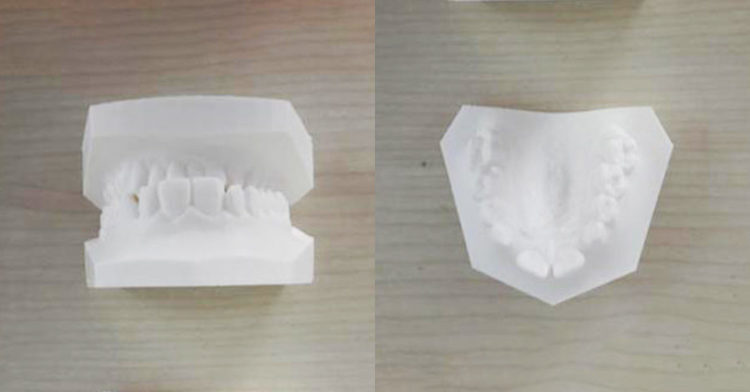

• Orthodontic Models: Both SLA and DLP provide the precision necessary for creating detailed orthodontic models, essential for planning treatments and creating aligners.
• Surgical Guides: These guides are vital for precision surgery, ensuring that dental implants are placed accurately.
• Speed and Efficiency: DLP’s ability to quickly print entire layers makes it ideal for dental labs needing rapid turnaround, which can be essential for same-day or next-day service.
• Material Requirements: The use of biocompatible resins, which can be sterilized, is

Other Industrial Use Cases

Beyond dentistry, SLA and DLP technologies facilitate a broad range of industrial applications:

• Jewelry: The ability to produce finely detailed molds quickly allows jewelers to experiment with intricate designs and patterns that would be difficult or impossible to achieve through traditional methods.
• Engineering Prototypes: Engineers utilize both SLA and DLP for prototyping to test the form and fit of components before mass production. The use of high-temperature and rigid resins ensures that these prototypes can withstand rigorous testing.
• Medical Devices: The high accuracy and ability to use biocompatible materials make SLA and DLP ideal for producing bespoke medical devices, such as custom prosthetics and implants.
• Manufacturing Tooling: Short-run manufacturing can benefit from molds and other tooling produced quickly and cost-effectively with 3D printing, allowing for rapid iteration and customization.

Consumer and Hobbyist Use Cases

The accessibility of 3D printing has also totally changed the consumer and hobbyist market. Insights into this application include:

• Miniatures and Figurines: Hobbyists frequently use DLP and SLA printing to create detailed miniatures and figurines, with the technologies providing the precision necessary for intricate designs.
• Custom Parts: DIY enthusiasts and small businesses benefit from the ability to produce custom parts on-demand, tailored to specific personal or commercial needs.
• Cost-Effectiveness and Accessibility: The reduction in costs and the size of entry-level resin printers has made this technology a feasible option for home use.
• Supportive Community: A robust online community supports new users with tutorials and troubleshooting, making starting in 3D printing more accessible than ever.

How to Select the Right Process?

Selecting the right resin 3D printing technology involves balancing several factors to align with your project’s requirements. Considerations should include the level of detail needed, the speed of production, budget constraints, and the specific application of the finished product. Material availability, finishing requirements, and expected production volume also play critical roles.

It’s important to evaluate whether your focus is on achieving ultra-fine details with technologies like SLA or maximizing throughput with the rapid layering capabilities of DLP systems.

When Should You Choose SLA Over DLP Printer?

Choosing an SLA printer is advisable when your project requires:

• High Detail and Smooth Finishes: SLA excels in delivering ultra-smooth surfaces and intricate details, ideal for complex organic shapes or when surface quality is paramount.
• Large Build Volumes: SLA printers can maintain high resolution even at larger scales, making them suitable for big parts without losing detail.
• Specialized Material Needs: If your project requires using advanced, industrial-grade resins, SLA systems often provide a broader range of compatible materials.
• Consistent Quality: For projects where uniformity across large parts is crucial, the precise laser of SLA printers ensures consistent results layer by layer.

When Should You Choose DLP Over SLA Printer?

Opting for a DLP printer might be the better choice when:

• Speed Is Essential: The ability to cure liquid resin a whole layer simultaneously makes DLP ideal for rapid production, especially valuable in dental and jewelry making where batch processing is common.
• Space and Budget Constraints: DLP printers tend to be more compact and often come at a lower initial cost than SLA printers, fitting better in small workshops or for hobbyists.
• Frequent Batch Printing: If you frequently need to produce multiple prints at once, DLP’s efficient layer-wide curing can significantly cut down production times.
• Ease of Maintenance: The fewer moving parts in DLP printers mean that they generally require less maintenance and calibration compared to the complex laser systems in SLA printers.

What are Alternatives to SLA and DLP?

Apart from SLA (Stereolithography) and DLP (Digital Light Processing), another popular photopolymer-based 3D printing technology is LCD (Liquid Crystal Display)/MSLA (Masked Stereolithography). MSLA utilizes an array of LEDs to project light through an LCD screen, which acts as a mask to shape each layer. This method shares the one-shot approach of DLP but typically comes at a lower cost, making it an attractive option for many users.

• Resolution and Cost: While early MSLA printers faced issues with pixelation, modern monochrome LCDs have significantly improved resolution and print quality.
• Energy Efficiency and Maintenance: MSLA printers are known for their energy efficiency but may require frequent LCD replacements depending on usage levels.
• Accessibility: These printers provide a cost-effective solution for mid-sized prints, offering good resolution without the higher expenses associated with DLP or SLA technologies.

Conclusion

As we wrap up our exploration on the different types of resin 3D printing, it’s clear that each technology; SLA, DLP, and LCD/MSLA, all have their unique strengths tailored to meet specific needs and aspirations.

If you find yourself in need of flawless finishes and exceptional details, SLA is your go-to, transforming complex visions into tangible realities with unmatched accuracy. For those of you in dynamic fields like dentistry or jewelry, where speed translates to productivity, DLP offers the rapid turnaround essential to stay ahead. And for the educators, students, and DIY enthusiasts among us, LCD printers strikes a balance between cost and capability, putting reliable printing within reach.

When it comes down to deciding, it’s about more than comparing specs, it’s about fitting a technology to your life’s work. Consider the everyday handling, from maintenance to the minute details of post-processing, and how these fit into your routine. You’re not just picking a printer; you’re setting the stage for your projects to flourish.
