Raise3D RMS220 – SLS 3D Printer

Rapid Manufacturing Simplified.

Black Friday Promotion: Receive 40kg of Raise3D PA12 Black V1 Powder ($2400 value) with the purchase of with RMS220 Series Standard Package.

Shop RMS220 Solution Request Demo Download TDS

Low TCO & High Output

By combining high output, rapid turnaround times, and a space-saving design, the RMS220 SLS 3D printer delivers an unparalleled balance of productivity and cost-effectiveness. 4 zone self-calibrating IR heating system can avoid dimensional deformation at different locations within the printing platform, achieving highly consistent and repeatable print results.

Raise3D S200-C Webpage - 3 TCO Helmet Lining

Helmet Lining

Material: Raise3D TPU90A White Powder

Printing Time: 4h 25min

Full Capacity: 3 pcs



Raise3D S200-C Webpage - 4 TCO Hairball Trimmer

Hairball Trimmer

Material: Raise3D PA12 Powder

Printing Time: 45min

Full Capacity: 16 pcs



Raise3D S200-C Webpage - 5 TCO Shunt Intake Manifold

Shunt Intake Manifold

Material: Raise3D PA12 GB Powder

Printing Time: 2h 23min

Full Capacity: 4 pcs



Raise3D S200-C Webpage - 6 TCO Gasket

Compliant Gasket

Material: Raise3D PA11 Powder

Printing Time: 2 min

Full Capacity: 10527 pcs



Raise3D S200-C Webpage - 6.1 TCO Cable Clip

Cable Clip

Material: Raise3D PA11 Powder

Printing Time: 12min

Full Capacity: 280 pcs

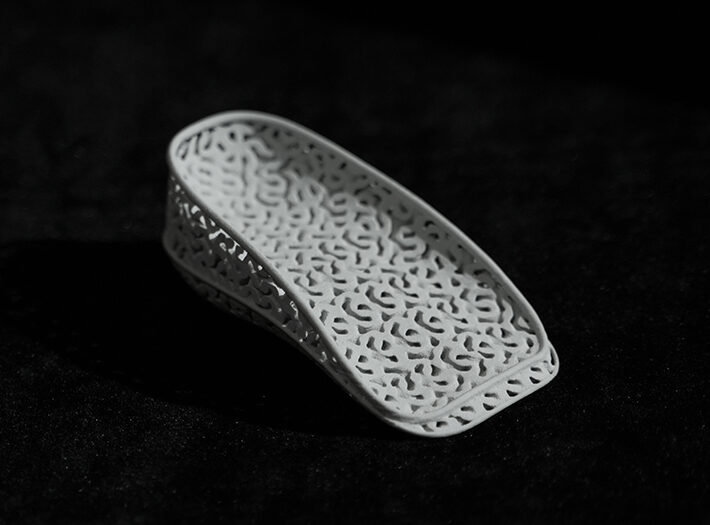

鞋垫

Custom Insole

Material: Raise3D TPU86A Powder

Printing Time: 4h 05min

Full Capacity: 18 pcs

High-Efficiency Batch Production

The RMS220 is built for continuous, high-throughput operation.

Its intelligent print control system with build volume of 220 x 220 x 350 mm / 17L, enabling up to 5 kg* of functional parts per day, supporting multi-part builds and high nesting efficiency.

*Using PA12 material and standard parameter settings, packing density is 20% of weight





















High-Precision Prints

The RMS220 delivers exceptional print quality, empowering users to push the boundaries of innovation in additive manufacturing and meet the demands of SLS 3D printing applications requiring tight tolerances and fine details.

Minimum thin-wall thickness: 0.5 mm*

*This needs to be implemented in thin-wall mode and requires technical support from Raise3D.























Industrial and Functional SLS Material

Raise3D S200-C Webpage - 8 Material - PA12

Raise3D PA12

General purpose material made for rapid production & prototyping

  • Easy-to-print
  • Balanced mechanical performance
  • High accuracy and consistency
Raise3D S200-C Webpage - 8 Material - PA12 GB

Raise3D PA12 GB

Enhanced in stiffness and temperature resistance

  • Higher modulus and HDT
  • Matte black surface finish with slight gloss
Raise3D S200-C Webpage - 8 Material - PA11

Raise3D PA11

Tough material made for impact resistant and compliant parts

  • Higher toughness comparing to PA12, suitable for soft hinges, snap-fit, etc.
  • Enables the printing of thin walls and fine structures
  • Matte black surface finish
Raise3D S200-C Webpage - 8 Material - TPU90A

Raise3D TPU90A

General purpose elastomer for highly durable soft functional parts

  • Strong, elastic, durable
  • Available in Black and White colors
  • Black: Matte black surface finish
  • White: Matte white finish with premium looking shade

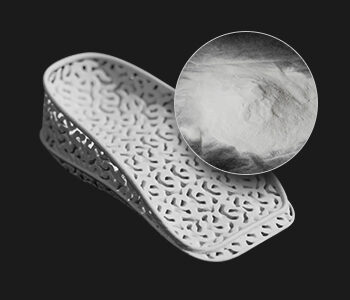

TPU86A

Raise3D TPU86A

General Purpose elastomer for highly durable soft functional parts

  • Strong, elastic, durable
  • Available in Black and White colors
  • Black: Matte black surface finish
  • White: Matte white finish with premium looking shade

RMS220 SLS 3D Printer Complete Ecosystem

A Cutting-edge Process, Simplifying Innovation at Every Step



Seamless Workflow to Maximize Printer Utilization

Step1

Preheating and Quick Setup: Import files with ideaMaker and start positioning model and packing parts to optimize density, reduce print time and operating costs, and minimize material waste.



Step2

High-Speed Printing: Preheating begins during slicing, reaching the printing temperature within 20 minutes. The powerful 75W laser and core technology enables a printing speed up to 2.2 L/h (20% packing density).



Step3

External Cooling and Fast Switching: The Build Unit 220 cools down to <100°C in just 30 minutes, allowing external cooling without occupying printer resources. This allows for quick switching to a second build unit to start the next print immediately.



Step4

Post-Processing and Labor Efficiency: The Raise3D C220-P integrates semi-automated processes for powder separation, recovery and preparation. Each print cycle requires only 20-45 minutes of labor, with one operator capable of processing over 50 kg of parts per shift.



Powerful Laser System for Precision and Speed

The RMS220 is equipped with a 75W 1064nm high-power laser and an industrial-grade high-precision galvanometer, with a scanning speed of up to 30,000 mm/s.

The combination of high laser power and rapid scanning speeds makes the RMS220 ideal for both intricate prototypes, on demand and high-throughput production and batch production parts, meeting the demands of commercial and industrial applications with unmatched efficiency and reliability.

Large Build Volume with Compact Footprint

Leading Build Volume: With dimensions of 220 x 220 x 350 mm and a build volume of 17L, the RMS220 offers one of the largest build sizes among entry-level industrial SLS printers. It meets diverse user needs, from small batch production to the design and development of medium and large 3D printed parts.

Space-Efficient Design: Despite its large build size, the RMS220 maintains a compact footprint of just 0.58 square meters, saving valuable floor space.

Fast Cooling and Continuous Productivity

The Build Unit 220 is an independently powered module designed to maximize uptime and accelerate post-printing workflow. The vertically movable build cylinder enables smooth lifting and lowering for stable handling and faster cooling without damaging parts.







Quick-Detach Modular Ensures Efficient Material Switching

The RMS220 reduces the SLS powder material switching time to just 45 minutes – 1/3 of the traditional process. Say goodbye to the challenges of cleaning powder in traditional SLS machines. The system enables thorough cleaning with no hard-to-reach areas, allowing users to fully utilize various materials for flexible printing.



RFID Management System

The Raise3D Radio-Frequency Identification (RFID) technology is an innovative feature integrated into the RMS220. It automatically identifies and configures the powder used, enhancing the user experience, streamlining material management, ensuring optimal part quality, and simplifying the 3D printing process.







Ergonomic and Thoughtful Design

Comfortable operation in any positions

Adjustable elbow rest for fatigue-free cleaning

Transparent protective cover for safety and visibility







RMS220 Technical Specifications

Download

RMS220

Technology

Selective Laser Sintering (SLS)

Build Volume

220 × 220 × 350 mm (8.7 × 8.7 × 13.8 inch) / 17 L

Laser Type

75 W infrared fiber laser, wavelength 1064 nm

Printing Speed

2.2L/h (packing density 20% by weight)

Max Powder Temp.

220°C

Hopper Size

31.5 L, 40 L if extended with material box

Maximum Output

5 kg/ Day*
*Using PA12 material and standard parameter settings, packaging density is 20% of weight

Layer Height

0.05 – 0.40 mm

Supported Materials

Raise3D PA12 Black Powder/ Raise3D PA11 Black Powder/ Raise3D PA12 GB Black Powder/
Raise3D TPU90A Black Powder/ Raise3D TPU90A White Powder/
Raise3D TPU86A Black Powder/ Raise3D TPU86A White Powder

OMP (Open Material Program)

Support selected third-party materials
Optional fully open material license available

Slicer

ideaMaker

Input File Formats

STL/ OBJ/ 3MF/ OLTP/ STEP/ STP/ IGES/ IGS

Atmosphere

Air/ Nitrogen (Built in nitrogen generator in RMS220, compressed air required.)

C220-P Technical Specifications

Download

C220-P

Build Volume

220 × 220 × 350 mm (8.7 × 8.7 × 13.8 inch)

Supported Printer

Raise3D RMS220 Series SLS Printer

Hopper Size

Fresh powder hopper: 20L
Used powder hopper: 20L

Supported Materials

Raise3D PA12 Black Powder/ Raise3D PA11 Black Powder/ Raise3D PA12 GB Black Powder/
Raise3D TPU90A Black Powder/ Raise3D TPU90A White Powder/
Raise3D TPU86A Black Powder/ Raise3D TPU86A White Powder

Revolutionize your design process and seize command of your production

Customize your RMS220 Series setup now





Request Demo
