Hyper Speed PETG CF

A cost-effective and reliable composite filament for Hyper FFF^®

Raise3D Hyper Speed PETG CF is a carbon fiber-reinforced filament (containing 8 wt.% recycled carbon fibers) based on polyethylene terephthalate glycol-modified (PETG), optimized for use with Hyper FFF^® technology (compatible up to L2 at 300 mm/s). This material maintains PETG’s outstanding general printing performance while offering enhanced matte carbon-fiber texture, as well as improved mechanical, thermal, and dimensional stability attributes thanks to the integration of recycled carbon fibers. It is an ideal material for prototyping and end-use functional applications that demand superior surface finish, reliability, and cost efficiency.

High rigidity and strength
Hyper FFF^® up to L2
Low moisture absorption
Dimensional stability and chemical resistance

Compatibility

Printer: Raise3D Pro3 HS Series/ Raise3D Pro3 Series with Hyper Speed Upgrade Kit/ Raise3D RMF500

Filament: Raise3D Industrial PET Support Filament

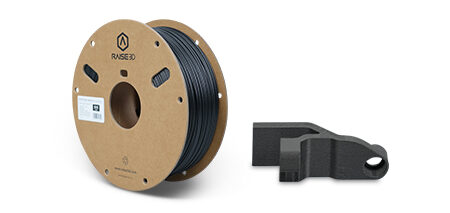

Raise3D Hyper Speed PETG CF Filament

Order Now

Applications

Prototyping
Automobile
Industrial end-use parts
Jigs & Fixtures

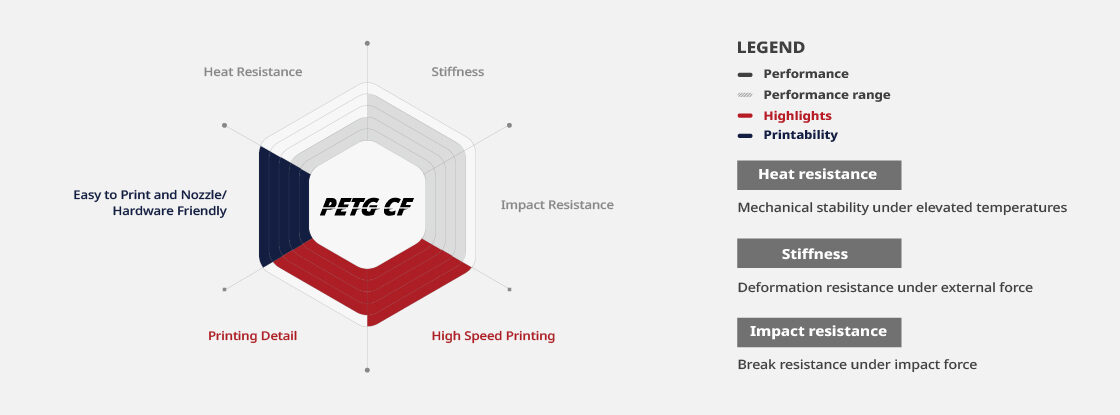

Benefits

High stiffness and strength
Matte and smooth finish
Chemical resistance

Hyper Speed PETG CF Technical Data Sheet Hyper Speed PETG CF Safety Data Sheet

Printing Guide

Recommended Print Settings

Nozzle temperature (°C)
280℃

Bed temperature (°C)
80℃

Layer height (mm)
0.2-0.25 mm

Printing speed (mm/s)
50-200 mm/s

Cooling fan
On

Drying temperature (°C)
80°C for 12 to 24 hours

Printing Notifications:

Dry Hyper Speed PETG CF at 80°C for 12-24 hours before printing, as low moisture content is crucial for final printed part quality.
After drying, we recommend storing Hyper Speed PETG CF filaments inside Raise3D Filament Dry Box during the printing process.
Abrasion of the brass nozzle happens frequently when printing Hyper Speed PETG CF, at minimum a Steel nozzle should be used or preferably, a SiC nozzle or a Ruby nozzle.

For Raise3D Printer Users:

Choose the best 3D printer to start your printing journey with Hyper Speed PETG CF. Find Pro3 HS Series, Pro3 Series, RMF500.

For ideaMaker Users:

Choose the right printing profile for Hyper Speed PETG CF on ideaMaker IO and use it on ideaMaker. Download the latest version of ideaMaker.
