Liqcreate Bio-Med Clear

Bio-Med Clear is perfect for applications that require non-cytotoxic, non-sensitizing and non-irritating features.

Liqcreate Bio-Med Clear is a rigid clear photopolymer resin and can be processed on most resin based 3D-printers. 3D-printed parts from this material exhibit bio-compatible properties when post-cured according to the manufacturers guidelines(page 4). After washing and post-curing, printed parts from Liqcreate Bio-Med Clear are capable of passing the bio-compatibility tests of: Cytotoxicity (ISO 10993-5:2009), Sensitization (ISO 10993-10:2021) and Irritation (ISO 10993-23:2021). Printed parts from Bio-Med Clear can be disinfected with commonly used disinfectants or sterilized by steam sterilization.

This resin is currently available in the Europe market only.

Benefits

  • Bio-compatible
  • Steam sterilization possible
  • High accuracy
  • Dimensional stable

Ideal for

  • Require bio-compatible features like non-cytotoxic, non-sensitizing and non-irritating
  • Medical devices and device components
  • Research and Development

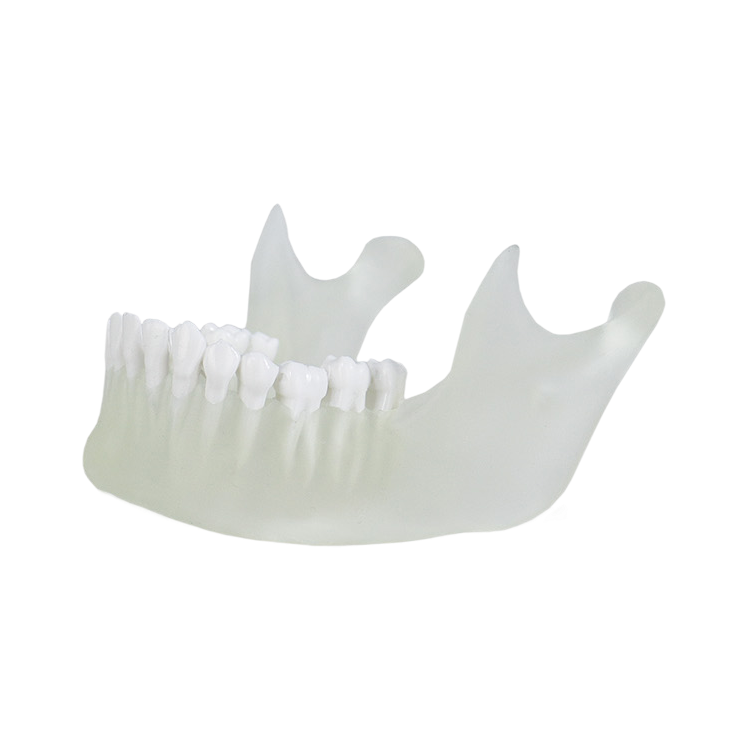

Materials Cover - Liqcreate-Bio-Med-Clear
2
1

Material Properties*

*Washed in IPA for 2 x 3 minutes in an ultrasonic cleaner. The second wash cycle is performed in fresh IPA followed by 30 minutes resting and post-curing for 30 minutes with LED at 60°C in the Curing product. These values may vary and depend on individual machine processing and post-curing. Softening above HDT, but no cracking in part up to 250°C / 482°F.



Description Method After UV-cure
Tensile Strength ASTM D638 55 MPa
Elongation at Break ASTM D638 5-10%
Tensile modulus ASTM D638 2.0 GPa
Flexural Modulus ISO 20795-2 1.7GPa
Flexural Strength ISO 20795-2 78 MPa
Flexural modulus ASTM 790 2.0 GPa
Flexural Strength ASTM 790 89 MPa
IZOD Impact notched ASTM D256 28 J/m
HDT-B 0.45 MPa ISO75 62℃
HDT-A  1.80MPa ISO75 48℃
Shore D Hardness D2240 85D
Cytotoxicity ISO 10993-5 Comply
Sensitization ISO 10993-10 Comply
lrritation ISO 10993-23 Comply

Download Product Documents

Liqcreate Bio-Med Clear
